China Coarse Primary Stone Jaw Crusher/Ore Crusher/Metal Crusher for Quarry Plants

Basic Info.

Model NO.	Various
Inlet Size	120-1020mm
Condition	New
Spare Parts	We Offer
After Sale Service	for The Whole Using Life
Technical Parameters	See Technical Table
Warranty Period	2 Years
Design	by Professional Engineer
Advantage	Professional Manufacture
Installation	Under Our Engineer′s Guide
Experience	More Than 50 Years
Certificate	ISO9001, ISO14000, Ce
Capacity	Customized
Transport Package	Standard Export Packing
Specification	Various
Trademark	ZK
Origin	Zhengzhou, China
HS Code	8417
Production Capacity	50 Set/Sets Per Month

Product Description

China Coarse Primary Stone Jaw Crusher/Ore Crusher/Metal Crusher for Quarry Plants

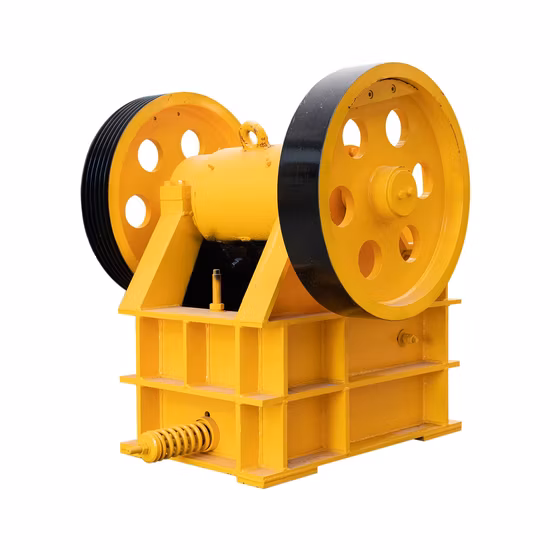

PE, PEX Series Jaw Crusher is Large-scale tilting complex style, widely used in mining, smelting, construction, highway, railway, water conservancy and chemical industry and many other industries, dealing with large particle size, compressive strength of not more than the various ore 320Mpa and the rough rocks or broken pieces of work. PE series for the rough-breaking, PEX series used to the small and thin break.
PE, PEX Series Jaw Crusher is a motor-driven through the motor pulley from the triangle and the groove-wheel-drive eccentric shaft, so that by moving the jaw is scheduled to moke a reciprocating motion trajectory, which will enter the fixed jaw plate, the activities of the jaw plate and while the composition of the broken shield material to be broken cavity, and through the lower part of the nesting material from the mouth will be finished.
Features and advantages: The structure of jaw crusher is simple, convenient and reliable maintenance, less operating costs.

1). Jaw crusher features and Benefits:
1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;
3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal width;
4. The broken cavity is deep and without dead zone, increased capacity and output feed;
5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;
6. The outlet employs pad-style adjustment devices, convenient and reliable, and increase the flexibility of the equipment;
7. Low noise, less dust;
8. Over-loading protection
9. Adjustable for easy wear parts
2). Usages:
Our Jaw Crusher is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing jaw crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.

Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com/calcining.html
Rotary Kiln:http://hnzkjq.en.made-in-china.com/calcining.html
Preheater: http://hnzkjq.en.made-in-china.com/calcining/8.html
Cement Mill: http://hnzkjq.en.made-in-china.com/grinding/17.html
Rotary Dryer: http://hnzkjq.en.made-in-china.com/calcining/116.html
Raw Mill: http://hnzkjq.en.made-in-china.com/grinding/16.html
Trommel Screen:http://hnzkjq.en.made-in-china.com/separating/137.html
Rotary cooler:http://hnzkjq.en.made-in-china.com/calcining/6.html

model	Size of feed opening	Max feed size	Discharge range opening	Capacity (m3/h)	Motor power (kw)
	(mm)	(mm)	(mm)
PE-250x400	250x400	210	20-60	3-15	15
PE-1000x1200	1000x1200	850	195-280	190-275	110-132
PE-1200x1500	1200x1500	1020	150-300	250-500	160
PEX-150x500	150x500	120	10-40	3-13	11
PEX-300x1300	300x1300	250	15-50	20-60	75

Our service:
Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory?level of spare parts, which means the replacements can be shipped to you right away.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.
